February 01, 2008

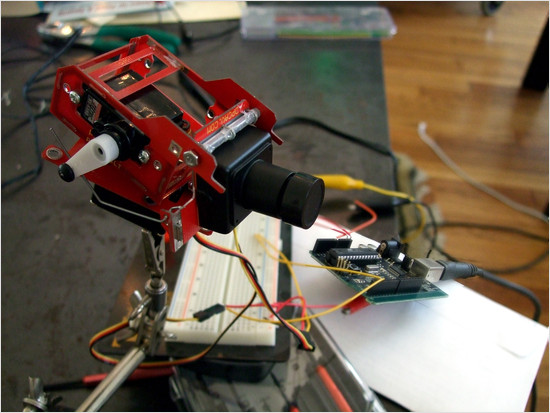

can you see the photoshopped part?

For UAV purposes I bought a kit for a tiny little pan/tilt head and a tiny little video camera and a couple tiny little servo motors. Before I completely installed the motors into the pan/tilt head I wanted to test them, so I found some servo code for my Arduino board and wired it all up. The motors worked. But the whine of those little servos is addictive and I couldn't stop there.

So I fancied up the Arduino code to take commands from the serial port. Then I wrote some Python code to read the tilt sensors in my laptop and send commands to the Arduino. Here's the result:

Reading the Mac's Sudden Motion Sensor was kind of a pain. Neither Amit Singh's AMSTracker nor pyapplesms read my Macbook Pro's Y-axis value correctly. Fortunately Daniel Griscom's SMSLib worked perfectly.

My Python code runs the smsutil program from SMSLib (patched to flush its output after each line; I couldn't figure out how to get the buffering to work correctly otherwise), then uses Tod Kurt's arduino-serial program to send commands to the Arduino (because when I opened the serial port directly in Python the program would hang).

It's all kind of hacky because I was in a hurry, but it works.

Arduino code: pandora_pan_tilt.pde.
Python code: sms_servo.py.

Update: I had some problems with the serial comms getting out of sync, so modified the Arduino code and the Python to make it a little more robust.

Posted by jjwiseman at February 01, 2008 11:06 AM
